GU10 Fire Rated Downlight Changeable Bezel GM-PCB001
Original price was: £6.99.£4.99Current price is: £4.99.

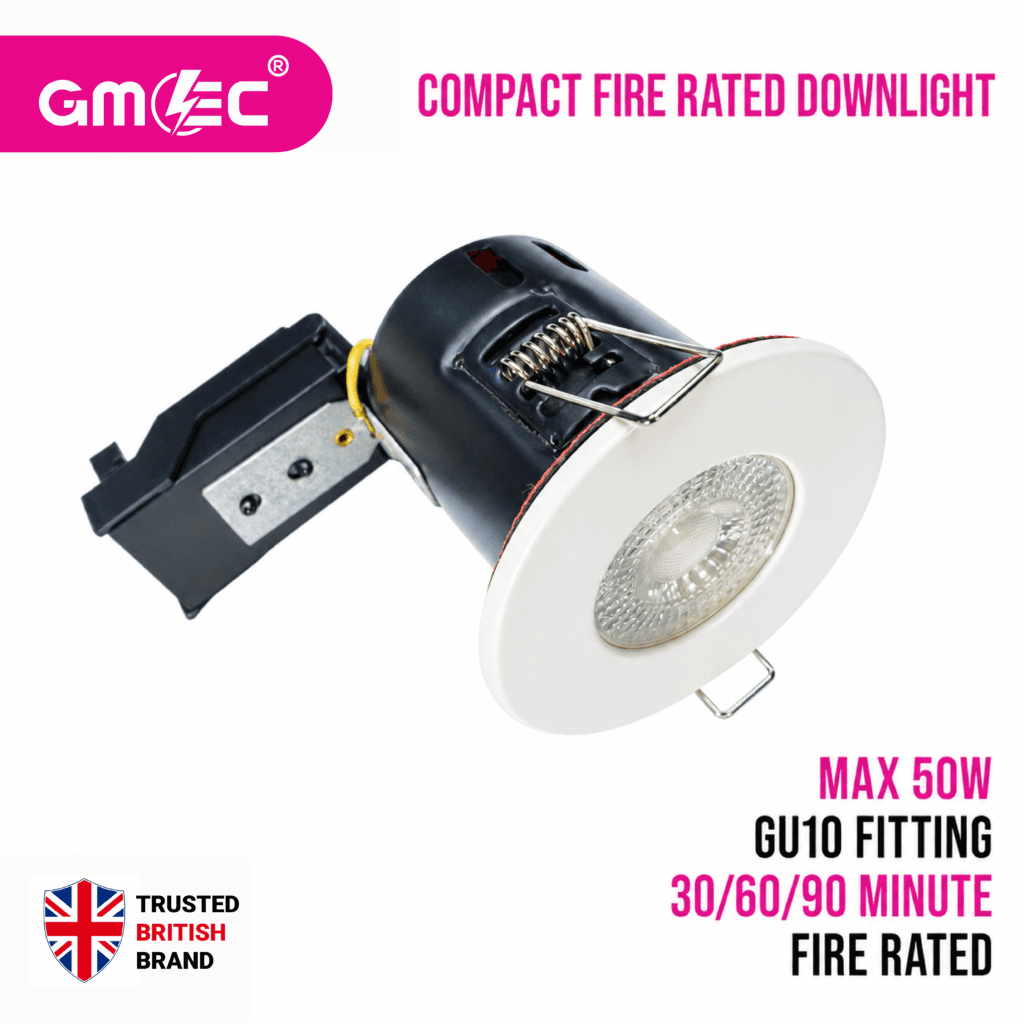

The GU10 Fire Rated Downlight is a fixed pressed-steel recessed fitting with 30, 60 and 90-minute fire protection. Model GM-PCB001 features an IP20 rating, changeable bezel, standard GU10 lampholder and compact Ø72mm ceiling cut-out. GU10 lamp not included.
- Fire Rated: Suitable for compatible 30, 60 and 90-minute ceiling constructions.
- Changeable Bezel: Compatible with white, chrome and satin nickel finishes.
- Pressed Steel: Provides a strong and durable recessed fitting.
- GU10 Compatible: Accepts a separately purchased GU10 lamp up to 50W.
- Compact Cut-Out: Requires an approximately Ø72mm ceiling opening.
- Fixed Design: Directs the selected spotlight vertically downwards.
- IP20 Rated: Intended for appropriate dry indoor locations.
- Easy Connection: Includes a quick connector and click terminal box.
In stock
Product Description
GU10 Fire Rated Downlight
The GU10 Fire Rated Downlight is a durable pressed-steel recessed spotlight fitting with 30, 60 and 90-minute fire protection. Model GM-PCB001 features a changeable bezel, an IP20 rating and a compact Ø72mm ceiling cut-out. A compatible GU10 lamp must be purchased separately.
See more
See less
GU10 Fire Rated Downlight for UK Ceiling Installations
The GU10 Fire Rated Downlight combines tested fire protection with a modern recessed appearance. It is suitable for compatible residential and light-commercial ceiling installations.
Model GM-PCB001 supports 30, 60 and 90-minute fire-rated ceiling applications. Correct selection helps maintain the fire resistance of a compatible ceiling after a spotlight opening has been created.
The required fire rating depends on the building and ceiling construction. Confirm the appropriate rating against the project specification before installation.
The fitting is manufactured from durable pressed steel. Its strong metal body provides a professional alternative to lightweight recessed spotlight housings.
This is a fixed downlight rather than an adjustable spotlight. The installed GU10 bulb directs its light vertically downwards.
The fixed design is suitable for balanced general-lighting layouts. Several fittings can be positioned evenly across a ceiling to provide consistent illumination.
Changeable Bezel Design
The GU10 Fire Rated Downlight has a convenient changeable front bezel. Compatible bezel finishes include white, chrome and satin nickel.
The choice of bezel allows the fitting to complement different ceilings, switches, sockets and interior finishes. Always confirm bezel compatibility with model GM-PCB001.
The front bezel can be replaced without removing the complete downlight body. This is useful when a room is redecorated or its colour scheme is updated.
Replaceable GU10 Lamp
The fitting contains a standard GU10 lampholder. Customers can choose a compatible spotlight according to the required brightness, colour temperature and beam angle.
A warm white GU10 bulb can create comfortable lighting in living rooms and bedrooms. Cool white illumination may be preferred for kitchens, offices and practical workspaces.
The GU10 Fire Rated Downlight supports a compatible GU10 lamp up to the stated maximum rating of 50W. The GU10 lamp is not included.
For lower electricity consumption, use a compatible energy-efficient GU10 LED bulb. Check the bulb dimensions before installation.
If dimming is required, the GU10 lamp and wall dimmer must be mutually compatible. The downlight fitting alone does not make the completed lighting circuit dimmable.
Compact Recessed Installation
The required ceiling cut-out is approximately Ø72mm. The visible outside diameter of the fitting is approximately Ø86mm.
The overall depth is approximately 100mm. Check that sufficient space is available above the ceiling before cutting the opening.
The ceiling void must accommodate the complete downlight, selected GU10 lamp, wiring and terminal box. Inspect the area for pipes, joists and hidden cables.
Spring clips hold the fitting securely inside a compatible ceiling opening. The front bezel covers the edge of the cut-out to produce a clean finish.
The GU10 Fire Rated Downlight includes a quick connector and click terminal box. It also contains a double-insulated GU10 lampholder and heat-resistant Teflon wire.
A 2mm fire-rated sealing ring is included around the fitting. Every component must be positioned correctly during installation.
IP20 Protection for Dry Interiors
This model carries an IP20 ingress-protection rating. It is intended for suitable dry indoor environments.
It must not be treated as an IP65 bathroom, shower-zone or outdoor fitting. Choose an appropriately rated product for locations exposed to moisture.
Browse our IP65 fire-rated downlights for wet-area and higher-protection alternatives.
Fire-Rated Downlight Safety
The GU10 Fire Rated Downlight should be installed by a competent person. Installation must comply with applicable electrical and building requirements.
Always isolate and verify the electrical supply before installation. Do not begin work until the circuit has been made safe.
Do not exceed the maximum permitted lamp rating. Check that the selected GU10 bulb is compatible with the fitting.
Do not cover the fitting with thermal insulation unless the installation instructions specifically permit it. Maintain the required clearance and ventilation.
Electrical Safety First recommends using fire-rated downlights to help maintain ceiling fire integrity. Read its downlight installation and safety guidance.
Official guidance concerning building fire safety in England is available in the UK Government’s Approved Document B fire-safety guidance.
GU10 Lighting in London and the UK
GMEC is a London-based lighting and electrical retailer. We supply lighting products to local customers and online buyers throughout the UK.
Customers searching for a GU10 Fire Rated Downlight in London can visit our physical shop. Online customers can order suitable lighting products for UK delivery.
Explore our GU10 fire-rated downlight collection.
Choose a compatible bulb from our GU10 LED bulb range.
You can also browse additional electrical and lighting products in the GMEC online shop.
Key Features
GU10 Fire Rated Downlight Key Features
- 30, 60 and 90-Minute Fire Rating: Supports compatible fire-rated ceiling constructions.
- Changeable Bezel: Compatible with white, chrome and satin nickel bezel finishes.
- Pressed-Steel Construction: Provides a durable and professional fitting.
- Fixed Downlight Design: Directs the installed spotlight vertically downwards.
- Replaceable GU10 Lamp: Allows the preferred light colour and output to be selected.
- Maximum 50W Rating: Supports a compatible GU10 lamp up to the stated limit.
- Ø72mm Cut-Out: Designed for a compact recessed ceiling opening.
- IP20 Protection: Suitable for appropriate dry indoor areas.
- Quick Connector: Supports an organised electrical connection.
- Click Terminal Box: Provides convenient access to the terminals.
- Heat-Resistant Wiring: Incorporates Teflon-insulated internal wiring.
- Five-Year Warranty: Warranty period displayed on the product packaging.
- Lamp Not Included: Requires a separately purchased GU10 bulb.
Product Specifications
GU10 Fire Rated Downlight Specifications
- Brand: GMEC
- Model: GM-PCB001
- Product Type: Fixed Fire-Rated Recessed Downlight
- Fitting Type: GU10 Spotlight Fitting
- Lamp Type: Replaceable GU10 Bulb
- Lamp Included: No
- Maximum Wattage: 50W
- Rated Voltage: 230–240V AC
- Frequency: 50Hz
- Fire Rating: 30, 60 and 90 Minutes
- Ingress Protection: IP20
- Material: Pressed Steel
- Style: Fixed and Non-Tilting
- Bezel Type: Changeable
- Bezel Finishes: White, Chrome and Satin Nickel
- Overall Diameter: Approximately Ø86mm
- Overall Depth: Approximately 100mm
- Ceiling Cut-Out: Approximately Ø72mm
- Lampholder: Double-Insulated GU10 Lampholder
- Internal Wiring: Heat-Resistant Teflon Wire
- Connector: Quick Connector
- Terminal Enclosure: Click Terminal Box
- Sealing Ring: 2mm Fire-Rated Ring
- Installation: Recessed Spring-Clip Mounting
- Recommended Location: Dry Indoor Areas
- Warranty: 5 Years
Ideal Applications
Ideal Applications for GU10 Fire Rated Downlight
- Living rooms and lounges
- Bedrooms and guest rooms
- Dining rooms
- Kitchens outside restricted wet zones
- Hallways and corridors
- Home offices and studies
- Commercial offices
- Retail shops and displays
- Reception and waiting areas
- Hotels and hospitality interiors
- Restaurants and cafés
- New-build properties
- Renovation and refurbishment projects
- Fixed recessed ceiling-lighting layouts
- Suitable dry indoor spaces
The GU10 Fire Rated Downlight is a dependable choice for customers seeking a pressed-steel recessed fitting with replaceable GU10 lamp compatibility, selectable bezel finishes and tested fire protection.
